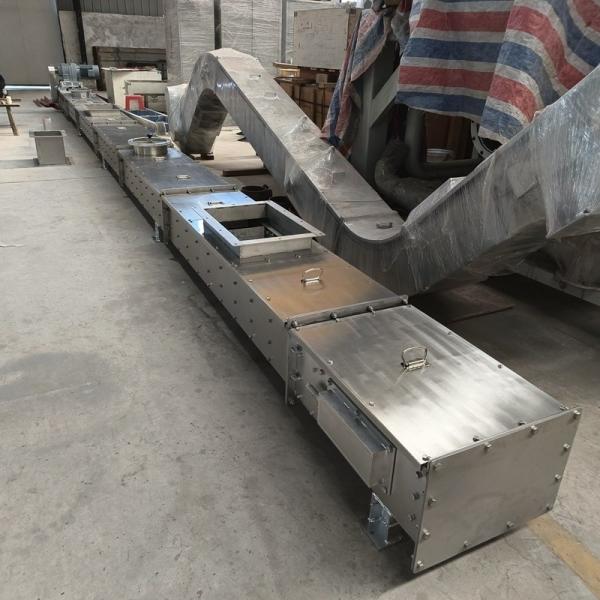

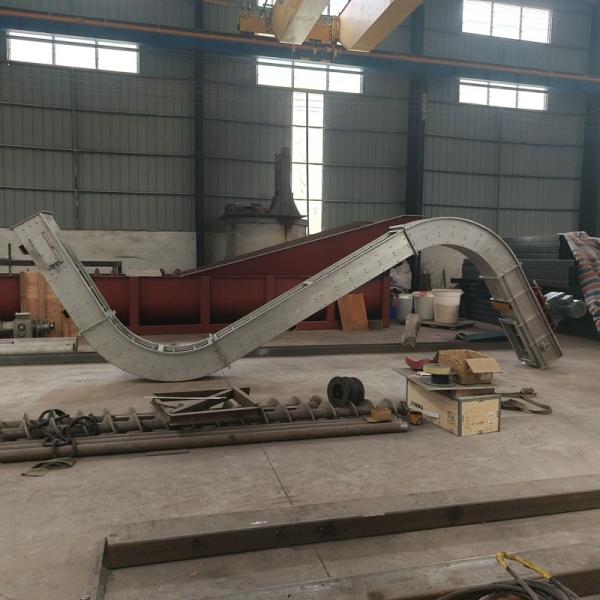

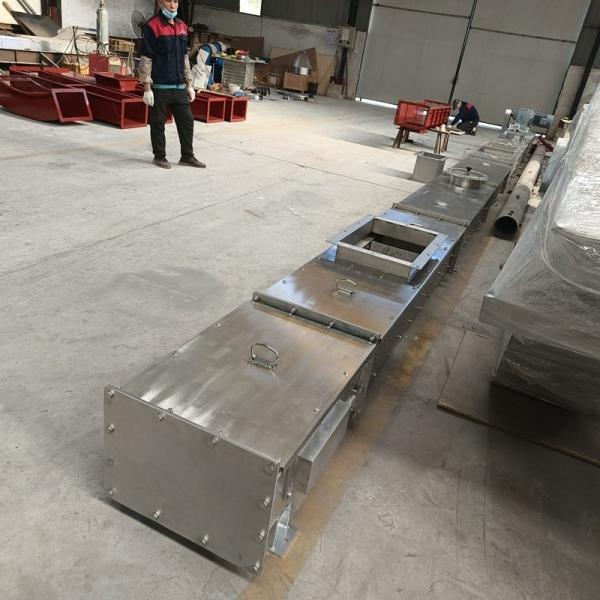

Industrial Coal Ash Drag Chain Conveyor Chip Embedded Chain Scraper Conveyor

Name: Industrial Coal Ash Drag Chain Conveyor Chip Embedded Chain Scraper Conveyor
Brand: WeSeW
Price: 30 USD

Buy cheap Industrial Coal Ash Drag Chain Conveyor Chip Embedded Chain Scraper Conveyor product

Brand Name : WeSeW

Model Number : AC0018

Certification : CE/UL

Place of Origin : china

MOQ : 1 pc

Price : $30,000 1-4pcs; $15,000 5-9pcs; $8,000 10+pcs;

Payment Terms : T/T,Western Union

Supply Ability : 10,000 pieces per month

Delivery Time : 10-20 working day

Packaging Details : Wooden Case

Material Feature : Heat Resistant, Fire Resistant

Condition : New

Machinery Test Report : Provided

Dimension(L*W*H) : Customized

Specification : Customized

Origin : China

Material : Stainless Steel

Application : Chemical Industry, Grain Transport, Mining Transport, Power Plant

Applicable Industries : Manufacturing Plant, Energy & Mining

Core Components : Motor, Engine

Transport Package : Wooden Box

Trademark : WeSeW

Production Capacity : 500000/Year

Contact Now

OEM custom grain coal ash chip embedded scraper transporter conveyor

Applicable Industries	Material handling
Material	Carbon steel
Structure	Conveyor System
Power	As the model you choose
Warranty	1 Year
Machinery Test Report	Provided
Usage	Material Transimission
Color	As requirement
Material Feature	Heat Resistant
Voltage	220v or as your local power
Dimension(LWH)	Customized Size
Width or Diameter	Customize
Video outgoing-inspection	Provided
Application	Industry
Feature	Simple Operation
Packing	Wooden box

Product Description:
Scraper conveyor is an important transportation tool for conveying materials such as sludge, kitchen waste, and dust removal. It is composed of head transmission, chute, scraper and so on. It is a conveying equipment that can improve the sealing performance and scraper strength, increase the conveying capacity, and improve the working efficiency of the conveyor.

Working Principle:
The working principle of the scraper conveyor is to fix the scraper on the chain (forming a scraper chain) on the open material receiving part, as a traction member, when the transmission part of the head is started, it drives the sprocket on the head shaft to rotate , so that the scraper chain circulates to drive the material to move along the chute until it is unloaded at the head of the machine. The scraper chain bypasses the sprocket for a stepless closed cycle operation to complete the conveying of materials.

Product Features:

1. The material of the guide rail is 5.5 times more wear-resistant than stainless steel, and the 24-hour operating life is more than 5 years;

2. Newly designed U-shaped groove, the material will not enter the guide rail, reducing the wear of the guide rail and chain;

3. The function of the full material device is added to prevent the phenomenon of blocking due to the full material of the silo;

4. Low noise;

5. Easy installation and easy maintenance.

Technical Parameters:

Model	U tank(mm)	Scraper(mm)	Conveyance volume(m³/h)	Motor	Material
Model	U tank(mm)	Scraper(mm)	Conveyance volume(m³/h)	Motor	Material
GBS200	Groove inner width 350,Tank thickness3;	200×80×5	0-3	Customize	carbon steel/stainless steel
GBS250	Groove inner width 400,Tank thickness3;	250×80×5	3-8
GBS300	Groove inner width 450,Tank thickness3;	300×80×5	6-10
GBS400	Groove inner width 550,Tank thickness3;	400×80×5	9-13
GBS500	Groove inner width 650,Tank thickness3;	500×80×5	11-17
GBS600	Groove inner width 750,Tank thickness3;	600×80×5	13-20
GBS700	Groove inner width 850,Tank thickness3;	700×80×5	16-23
GBS800	Groove inner width 950,Tank thickness3;	800×80×5	18-27

Scope of application:

It is suitable for powdery, granular and small block materials in chemical industry, environmental protection, food and other industries.

Drawing:

Industrial Coal Ash Drag Chain Conveyor Chip Embedded Chain Scraper Conveyor
